Description
PRODUCT DESCRIPTION
POWER CONTINUITY CONVEYED
Intended to convey continuous power supply to Small Home and Office, Digital Class Room Equipment, Home Theatre Systems (LED TV and Set Top Box), Routers / Modems, CCTV Surveillance, Cyber Cafe and Desktop PC backup support.
VALUE FOR MONEY
India’s Superior Brand with best in quality and worth the money. Luminous is a main Indian buyer brand with top-notch items appropriate for the Indian climate.
UNDERLYING VOLTAGE CONTROLLER
Outfitted with an integrated voltage controller to safeguard connected equipment and run without disturbance in any event, when voltage is excessively high or low. Appropriate for India’s inconsistent power condition, ideal for switching of loads between the main power supply and generators.
PACKED FOR EFFICIENCY
Packed with cutting-edge characteristics like Smart Charge and Intelligent Continuous Charging Technology to guarantee connectivity without disturbances.
UNNOTICED DISTURBANCES WITH CONTINUOUS WORK
Keep on working without problems not just on the occasion of an unexpected power outage during low or high voltage changes.
LONG BATTERY DURATION
Longer battery duration and quicker charging to safeguard your information and frameworks.
BOOT ON BATTERY
Cold start capacity permits your PC to boot on battery.
TECHNICAL SPECIFICATIONS
» OVERVIEW

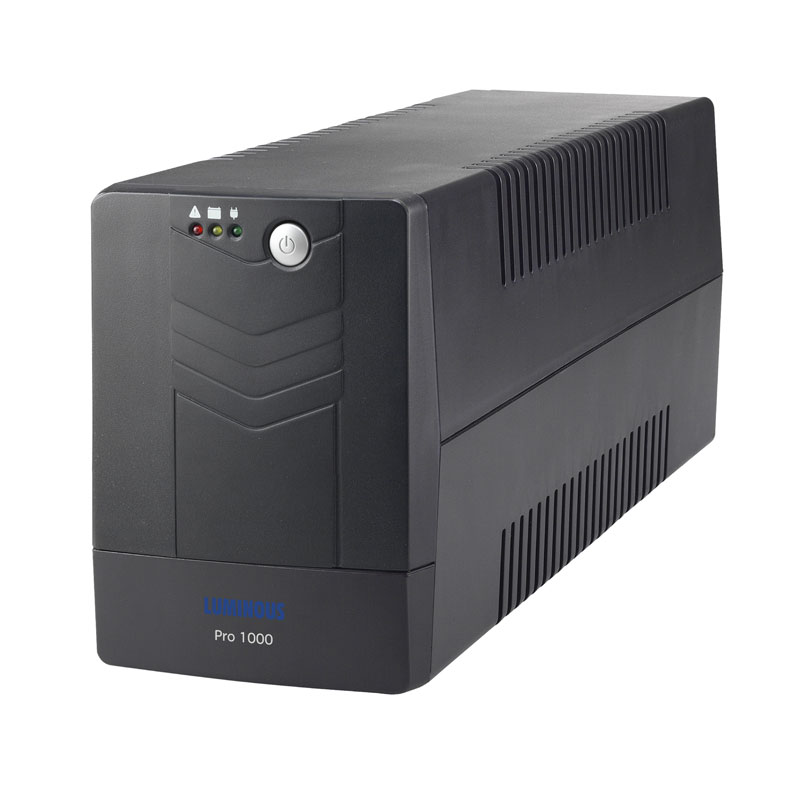

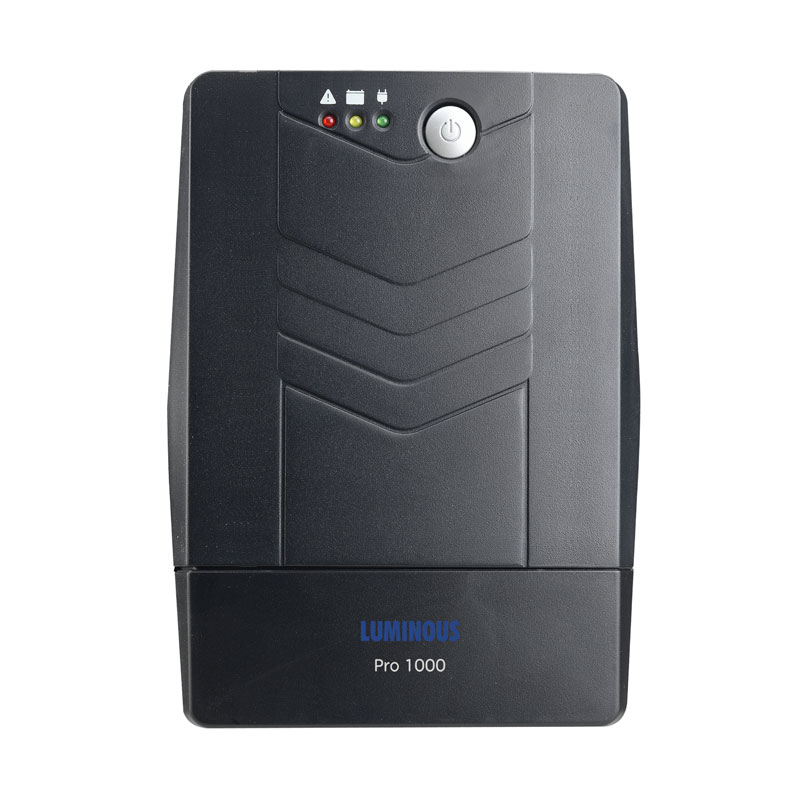

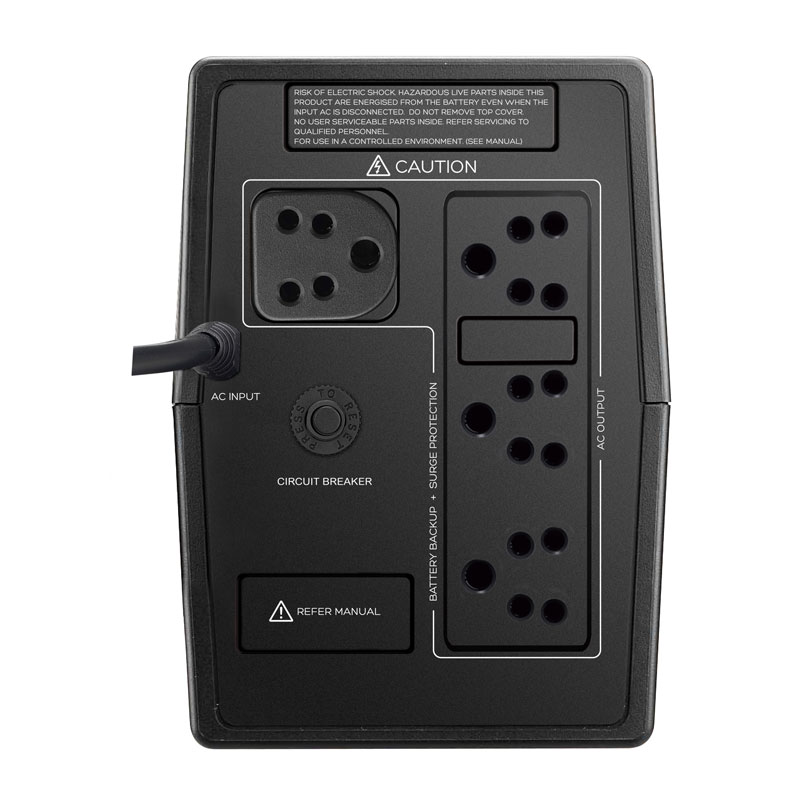

• Model No.: LB1000PRO
• Capacity: 1000 VA / 600 W
» INPUT
• Voltage: 230 V AC
• Voltage Range: 140 – 300 V AC
• Nominal: 50 Hz (Auto Sensing)
» OUTPUT
• Voltage Regulation: 230 V ± 10%
• Frequency Range (Battery Mode): 50 – 60 Hz ± 1 Hz
• Transfer Time: Typical 4 – 8 ms, 13 ms Max
• Waveform: Simulated Sine Wave
» BATTERY
• Type and Number: 24 V / 7.5 Ah × 2 Numbers
• Charging Time: 4 – 6 Hours Upto 90% Capacity
• Efficiency: 94%
» DISPLAY – INDICATOR
• AC Mode: Solid Green LED
• Battery Mode: Flashing Yellow LED
• Fault Mode: Solid Red LED
» PHYSICAL
• Product Dimensions (L × W × H): 10.1 cm × 27.9 cm × 14.2 cm
• Package Dimensions (L × W × H): 19.2 cm × 39 cm × 27.5 cm
• Net Weight: 7.9 Kg
• Gross Weight: 8.5 Kg
» ENVIRONMENT
• Operating Humidity: 0 – 90% RH @ 0 – 40 °C (Non-condensing)
• Noise Level: Less than 40 dB
» CONTRACTUAL WARRANTY
• Warranty: 2 years on-site warranty on both UPS and in-built battery
